Product Description

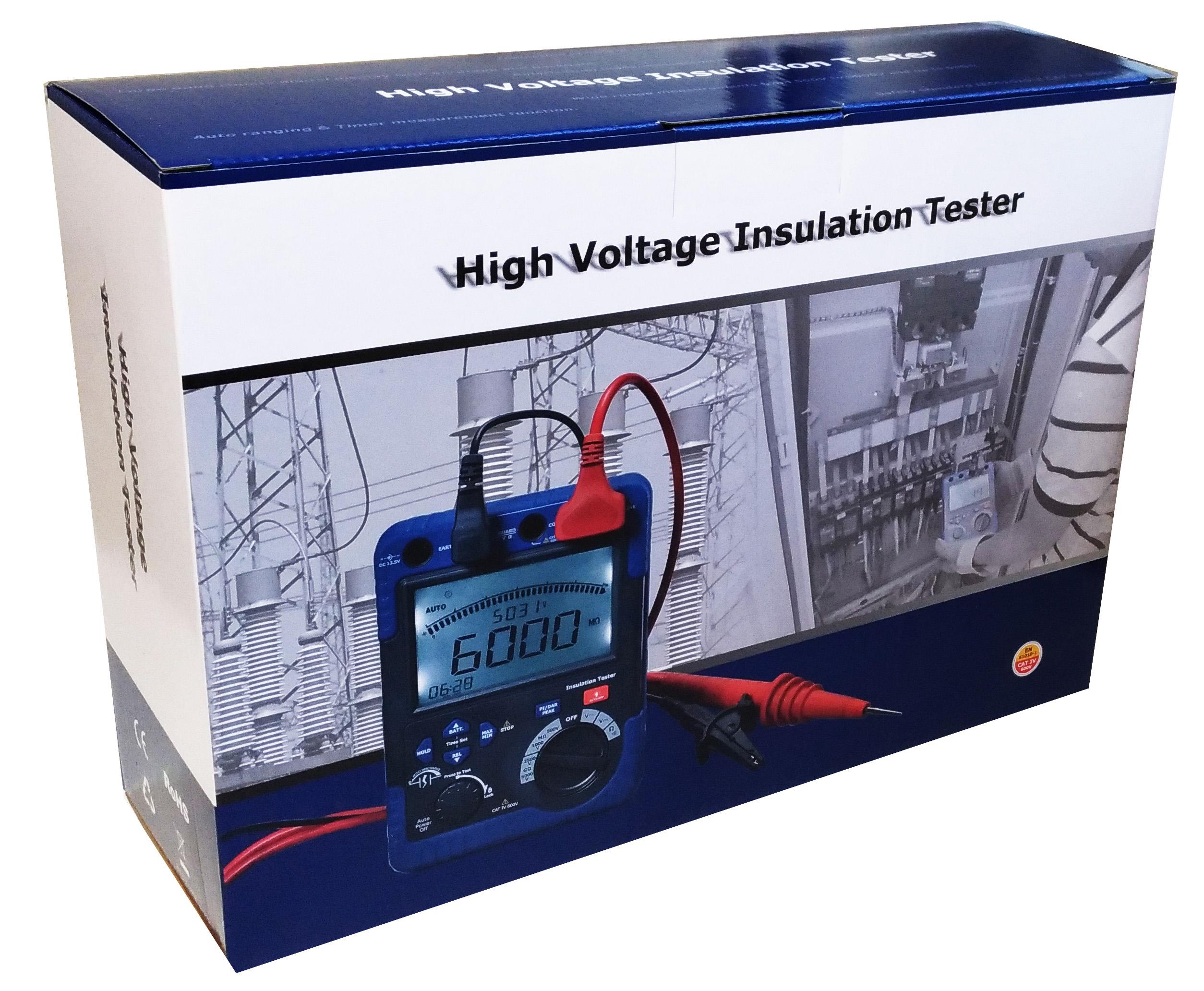

This is a brand new CEM DT-6605 meter. This digital insulation tester is CE certified. This top-of-the-line device provides 500V, 1000V, 2500V and 5000V voltage during the test cycle. It sources up to 1.2mA current during the test to offset the capacitance load. With the auto range function, it can measure up to 60 Giga Ohm with the resolution of 10 mega ohm. The back light LCD screen allows you read easily in the dark. It also comes with a heavy duty carrying case to protect your device when working in the field.
*** Warning: This device is to be used by certified technicians only. Inadequate use by the un-trained personnel may cause severe body injury. MeterShack.com is not liable for any injuries caused by use or misuse of this product.
FEATURES
* Wide range measurements from 500V to 5000V and up to 60 Giga Ohm
* Meets IEC61010-1, CAT IV 600V safety standard
* Large 6000 counts digital display with bargraph and backlight
* Polarization index measurement (PI)
* Auto ranging & timer measurement function
* Indication of output voltage and discharge voltage
* Auto-discharge function and voltage output warning function
* Auto power off and battery check
* MAX/MIN, Peak, Relative value & Data hold function for DC/AC voltage measurement
* Power source: LR14 - C size Battery x 8 (included) or 100-240VAC, 50/60Hz AC adapter (included)
* Accessories: Manual, test leads, AC adapter and plastic carrying case
SPECIFICATIONS
*** Warning: This device is to be used by certified technicians only. Inadequate use by the un-trained personnel may cause severe body injury. MeterShack.com is not liable for any injuries caused by use or misuse of this product.
FEATURES
* Wide range measurements from 500V to 5000V and up to 60 Giga Ohm
* Meets IEC61010-1, CAT IV 600V safety standard
* Large 6000 counts digital display with bargraph and backlight
* Polarization index measurement (PI)
* Auto ranging & timer measurement function
* Indication of output voltage and discharge voltage
* Auto-discharge function and voltage output warning function
* Auto power off and battery check
* MAX/MIN, Peak, Relative value & Data hold function for DC/AC voltage measurement
* Power source: LR14 - C size Battery x 8 (included) or 100-240VAC, 50/60Hz AC adapter (included)
* Accessories: Manual, test leads, AC adapter and plastic carrying case
SPECIFICATIONS
Function | Insulation resistance | Voltage | Resistance | |||
Range | 500V | 1000V | 2500V | 5000V | AC/DCV | |
Measuring Range (Auto ranging) | 0-6.000MΩ 6~60.00MΩ 60~600.0MΩ 600~6000MΩ | 0-6.000MΩ 6~60.00MΩ 60~600.0MΩ 600~6000MΩ | 0~60.00MΩ 60~600.0MΩ 0.6~6.000GΩ 6~60.00GΩ | 60~60.00MΩ 60~600.0MΩ 0.6~6.000GΩ 6~60.00GΩ | 0~600.0V (60~1kHz) | 0~600.0Ω 600~6000Ω |
Accuracy | ±5%rdg ±3dgt; ±20% (>6GΩ or more) | ±1.5%rdg ±5dgt | ±1.5%rdg ±10dgt | |||
Short Circuit Current | 1.3mA approx | - | ||||
Rated test Current (at load Resistance) | 1mA-1.2mA 0.5mΩ | 1mA-1.2mA 1mΩ | 1mA-1.2mA 2.5mΩ | 1mA-1.2mA 5mΩ | - | |
Open circuit voltage | 500VDC/+20%-0% | 1000VDC/+20%-0% | 2500VDC/+20%-0% | 5000VDC/+20%-0% | - | |
Continuity check | Buzzer sounds at 50Ω | |||||
Display | 6000 Counts | |||||
Current consumption | About 1000mA (during measurement) | 25mA approx. | ||||
Withstand Voltage | 5320V AC for 5 seconds | |||||
Safety standard | IEC 61010-1 CAT IV 600V Pollution Degree 2 | |||||
Power supply | DC12V: LR14x8 (C size battery x8 included) | |||||
Dimensions | 198(L) x 148(w) x 86(d) mm (7.7" x 5.9" x 3.5") | |||||
Weight | 1438g (about 3.2 lbs) | |||||
Accessories | Test leads, instruction manual, and 100V/240V AC adapter |
Additional Information
SKU | MDT6605-001 |
Manufacturer | MeterShack |
Warranty | 1 Year |
Tax Class | 9.00% Tax in CA |
