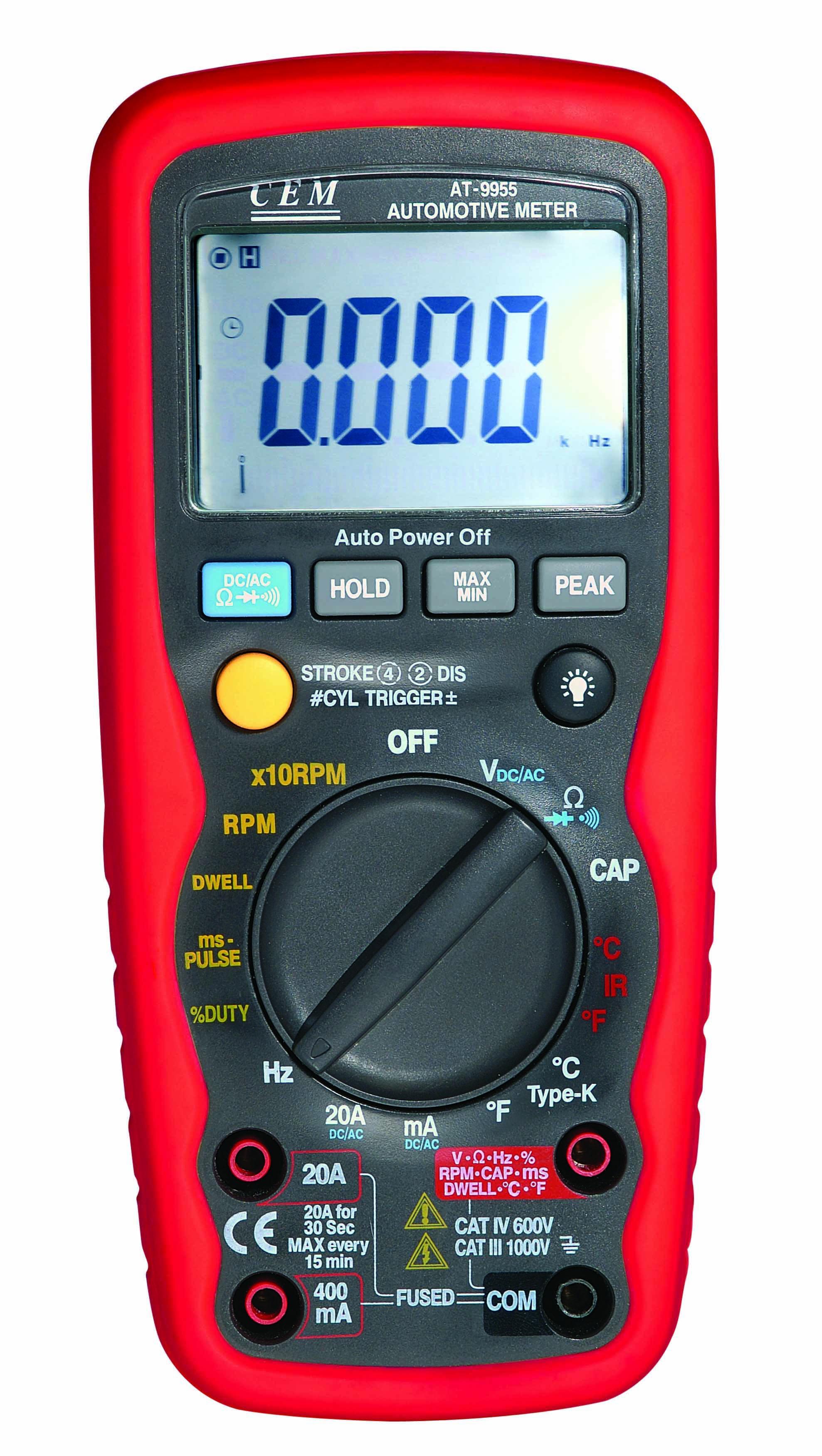

CEM AT-9955 Professional Digital Automotive DMM Tune up Meter with IR Laser Thermometer

This is a brand new CEM AT-9955 CE certified digital automotive DMM. This top-of-the-line device features duty cycle measurement and dwell angle measurement for 1 - 8 cylinder engine, up to 12,000 RPM. This meter also measures temperature, resistance, capacitance, pulse width, frequency, AC/DC voltage and current.

An IR laser thermometer is also included to allow precision measurement from distance. The IR thermal meter is ideal for measuring component temperature such as engine and transmission box while the K-type temperature probe allows the exhaust air temperature to be measured. A heavy duty carrying case is also included for the protection of the device and your convenience.

FEATURES

* Large LCD display
* RPM measurement for automotive engines with 2 to 10 Cylinders using the inductive Pick-up.
* Oversized high contrast 6000 counts LCD display with backlight
* 14 Functions including DCV, ACV, DCA, ACA, Resistance, RPM, Dwell angle, Duty cycle, Frequency, Temperature ( IR Temperature - switchable deg C and deg F), Capacitance, Continuity and Diode Check.
* Read pulse duty cycle and dwell angle for electronic fuel injection feedback carburetors, and ignition
* Data Hold and Relative functions
* Over-range indication
* Auto Power Off
* Fused current inputs and Overload protection on all ranges.
* Measures Milliseconds pulse width to test on-time of fuel injectors, idle air control motors, and electronic transmission controls.
* Complete with test leads, K-type temperature Probe, IR temperature probe Inductive pick-up and 9V battery.
* Dimensions / Wt.: 182X 82 X 55mm / 360gram

SPECIFICATIONS

Function	Range	Accuracy (%rdg + digits)
DC Voltage	400mV, 4V, 40V, 400V, 1000V	± (0.5% + 2d)
AC Voltage	400mV, 4V, 40V, 400V, 700V	± (0.8% + 4d)
DC Current	400uA, 4000uA, 40mA, 400mA, 4A , 20A	± (1.2% + 2d)
AC Current	400uA, 4000uA, 40mA, 400mA, 4A , 20A	± (1.5% + 4d)
Resistance( Ω )	400, 4K, 40K, 400K, 4M , 40M	± (0.8% + 3d)
RPM(Tach)	600~4000RPM ; 600~12000RPM(x10RPM)	± (2.0% + 2d)
Dwell Angle	4, 5, 6, 8 CYL	± (2.5% + 2d)
Capacitance	40nF, 400nF, 4uF, 40uF,100uF	± (3.0% + 2d)
Frequency (Hz)	0.001Hz~9.99MHz	± (2.0% + 2d)
Duty Cycle	0.1% ~ 99.9%	± (1.5% + 2d)
Temperature	-20 deg C ~ 760 deg C / -4 deg F ~ 1400 deg F	± (3.0% + 2d)
IR temperature	-20 deg C ~ 280 deg C / -4 deg F ~ 536 deg F	± (3.0% + 2d)
Pulse Width	0.1~10mS	± (3.0% + 5d)
Diode Check	Open circuit voltage 1.5V dc typical; Test current 0.3mA typical.
Continuity test	Threshold 30 Ω , Continuity Beeper 2.7 KHz.
