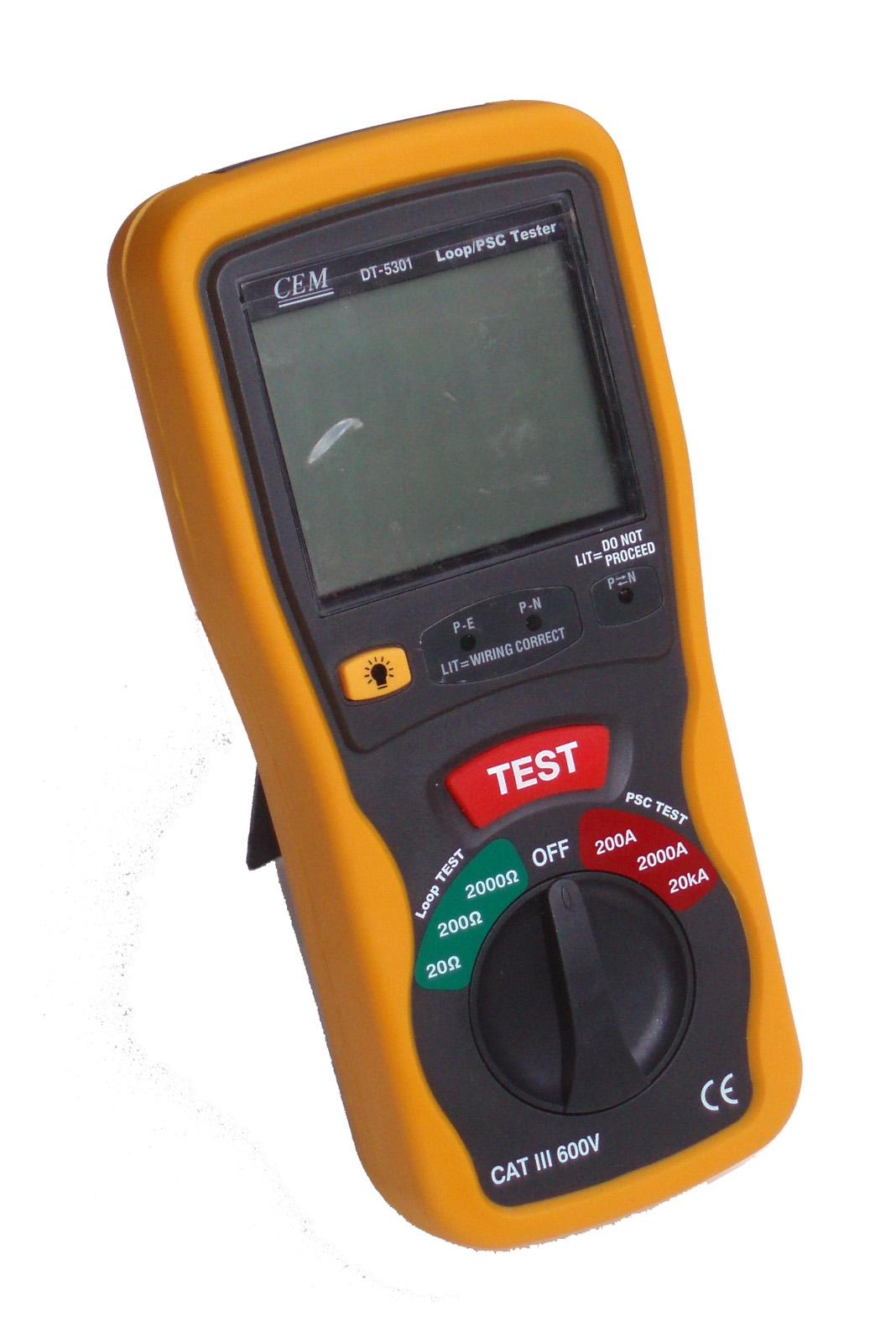

DT-5301 Digital LCD Earth Loop Impedance and Prospective Short Circuit (PSC) Tester for European Power Circuit

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

DT-5301 Digital LCD Earth Loop Impedance and Prospective Short Circuit (PSC) Tester for European Power Circuit

Be the first to review this product

Availability: In stock.

Regular Price: $ 599.95

Special Price: $ 299.95

Add Items to Cart
OR

Quick Overview

This top-of-the-line Loop / PSC tester is designed to test loop impedance and AC fault current with great accuracy. This device is designed for European power circuit only and cannot be used other than specified.

Product Description

This is a brand new DT-5301 industrial Loop / PSC tester. This top-of-the-line Loop / PSC tester is designed to test loop impedance and AC fault current with great accuracy. This device is designed for European power circuit only and cannot be used other than specified. It's custom microprocessor controlled circuit ensures highest reliability at all time. DT-5301 also equips with 3 status LEDs to give warnings for wiring problems. Please always check the status of the 3 LEDs prior to test to avoid damage to the tester and the power circuits.

This device does not work with US power circuit.

This meter comes in double molded plastic housing and is CAT III 600V rated. This device is compact and portable. It comes with batteries pre-installed. A heavy duty carrying case is included to protect your device when working in the field.

*** Warning: This device is to be used by the certified technician only. All safety regulation should be observed when testing power circuits. Please read the user's manual before using this device.

FEATURES

* 3 LEDs for checking the wire status
* Visual indication of reversed phase and neutral wiring at socket
* Over heat and over load protection prolongs the life of the meter
* Low battery indication
* Variable test time and test current to optimize test result
* Direct reading of the PSC (Prospective Short Circuit Current) on the meter
* Low loop resistance measurement
* Auto lock-out if test resistor overheats
* Large LCD display with back light

SPECIFICATIONS

Loop resistance Test:

Range Resolution Test current Test time Basic Accuracy
20 Ohm 0.01 Ohm 25A 20ms +/-  0.45 Ohm
200 Ohm 0.1 Ohm 2.3A 40ms +/-  4.5 Ohm
2000 Ohm 1 Ohm 15mA 280ms +/-  45 Ohm

Prospective Short Circuit Current (PSC) Test:

Range Resolution Test current Test time Basic Accuracy
200A 0.1A 2.3A 40ms +/- 4.5A
2KA 1A 25A 20ms +/- 0.045KA
20KA 10A 25A 20ms +/- 0.45KA

AC Voltage Measurement / Display at 50Hz:

Range Resolution Basic Accuracy
196V - 250V 1V +/- (2% + 5 dig)

Power circuit requirement for Loop and PSC test: 230VAC  +10%  -15%  @ 50Hz

Operating Temperature: 0 deg C to 40 deg C

Power Source: 6 x 1.5V (AA) batteries

Size: 200mm x 92mm x 50mm (7.9" x 3.6" x 2.0")

Weight (with batteries): 700g (1.54 lbs)

Additional Information

SKU MDT5301-001
Manufacturer MeterShack
Warranty 1 Year
Tax Class 8.625% Tax in CA
