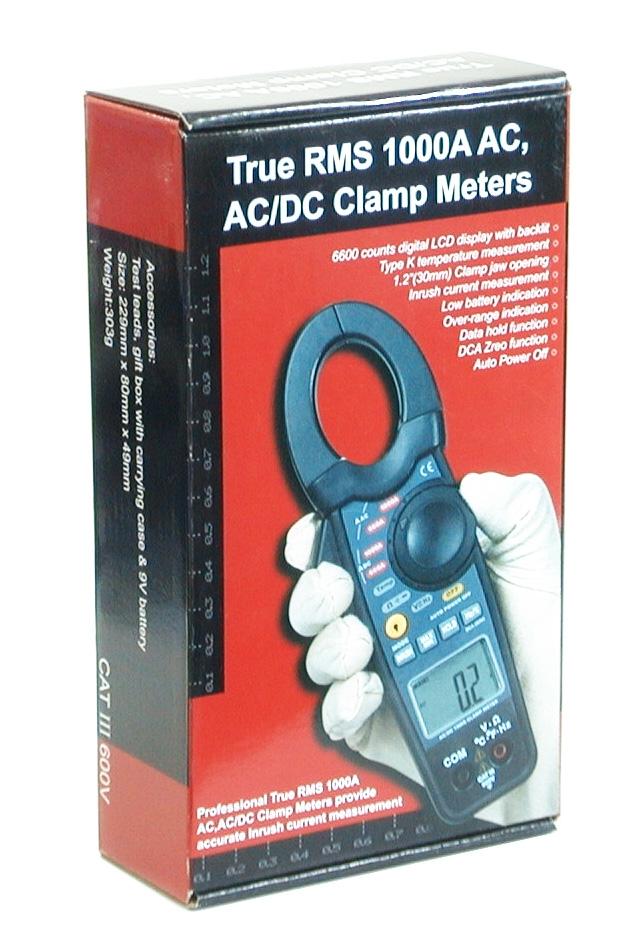

CEM DT-3368 True RMS 1000A Inrush AC/DC Current Voltage Frequency Temperature Clamp-on Meter

This is a brand new CEM DT-3368 CE certified digital clamp meter. This top-of-the-line device features 1000 Amp True RMS precision measurement, inrush current measurement, and 6600 count LCD display with back light. The DT-3368 also offers accurate AC/DC voltage, resistance, duty cycle, frequency and temperature measurements.

The inputs are protected to EN 61010-1 CATIII 600V. A heavy duty carrying pouch is also included for the protection of the device and for your convenience.

*** Warning: This device is to be used by a certified technician only. All safety regulation should be observed when testing high power circuits.

FEATURES

* True RMS AC voltage and current up to 1000A
* Inrush current measurement (AC ONLY)
* Type K temperature measurement
* Resistance, frequency and duty cycle measurement
* 6600-count LCD display
* 1.2" (30mm) Clamp jaw opening
* Continuity buzzer & Diode check
* Data hold function
* DCA zero function
* Over range indication
* Auto power off
* Low battery indication
* Accessories: Test leads and Carrying case

Note: Only the current is measured via the clamp loop. All other measurements are done through the probes. Please make sure only a single conductor carrying current is inside the closed clamp.

SPECIFICATIONS

Function	Max Range	Basic Accuracy	Max. Resolution
AC Current	1000A	+(2.5%+5d)	0.1A
DC Current	1000A	+(2.8%+4d)	0.1A
AC Voltage	600V	+(1.0%+2d)	0.1mV
DC Voltage	600V	+(0.8%+4d)	0.1mV
Resistance (Ω)	40MΩ	+(1.0%+4d)	0.1Ω
Frequency (Hz)	10MHz	+(1.2% + 3d)	0.01MHz
Duty Cycle	10 - 94.9%	+(1.2% + 3d)	0.1%
Temperature	760 deg C / 1400 deg F	+(3.0% + 5d)	1 deg C/F
Inrush Current - AC	1000A AC	+(2.0% + 5d)	0.1A
Continuity check	Threshold 40Ω ; test current < 0.5 mA
Diode test	Typical test current 0.3mA ; Typical test voltage < 3VDC

* Dimensions: 229X 80 X 49mm * Weight: 303g
